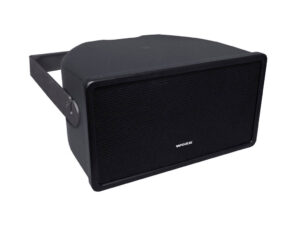

The WORK PRO WFS Series are high-quality audio projectors specifically designed for outdoor applications. Each speaker is equipped with a coaxial transducer of 8 (WFS 4), 10 (WFS 5,10,500), or 12 inches (WFS 6) and a 1.5-inch compression driver.
This series includes the following models: WFS 4 CX-B, WFS 4 CX-W, WFS 5 CX-W, WFS 5 CX-B, WFS 6 CX-B, WFS 6 CX-W, WFS 10CX R, and WFS 500 CX-B.
IP66 weather resistance certification
The IP66 certification of the WFS Series ensures that the speakers are resistant to both dust and water. This makes the speakers an ideal solution for locations frequently exposed to changing weather conditions, such as sports fields, open-air concerts, or outdoor events. They can be exposed to rain, wind, or dust without any issues, making them perfect for outdoor applications that require reliable audio playback, regardless of weather conditions.
Easy to Install
This series comes with a sturdy U-bracket, allowing the speaker to be mounted in the desired location for optimal sound distribution. The bracket provides flexibility in installation, enabling the speaker to be positioned easily for optimal coverage in various environments. Whether it’s a sports field, a park, or another outdoor space, the products of the WFS Series delivers a clear and powerful sound. Do you need help with installation or advice on the best placement? Our team is ready to provide guidance and assist you in making the right choices for optimal results.
Specifications of the WFS-Series
| WFS 4CX-B/W | WFS 5CX-B/W | WFS 6CX-B/W | WFS 10 CX R | WFS 500CX-R | |
 |
|
|
 |
|
|
Type |
Surface Mount Speaker | Surface Mount Speaker | Surface Mount Speaker | Surface Mount Speaker | Surface Mount Speaker |
Power |
150 W | 200 W | 300 W | 300 W | 500 W |
Frequency Range |
80 Hz – 18 KHz | 70 Hz – 18 KHz | 70 Hz – 18 KHz | 89 Hz – 20.5 kHz | 66 Hz – 19 KHz |
| L100V Power | 18W/37.5W/75W/150 W L100 V | 25/50/100/200 W L100 V | 37.5W/75W/150W/300W L100 V | 120 W @ L100V | |
| L70V Power | 9W/18W/37.5W/75W/150 W L70 V | 12.5/25/50/100 W L70 V | 18.5W/37.5W/75W/150W/300W L70 V | ||
| Low Impedance Power | 150W @ 8 Ohm | 200W @ 8 Ohm | 300W @ 8 Ohm | 300W prog @ 8 Ohm | 500 W RMS (89.5 Vp) |
Sensitivity |
101 dB | 103 dB | 103 dB | 104 dB | 100 dB |
IP Rating |
IP 66 | IP 66 | IP 66 | IP 65 | IP 65 |
Color |
Black/White | Black/White | Black/White | Black | Black |
Dimensions
|
390 x 370 x 330 mm | 385 x 355 x 348 mm | 540 x 500 x 500 mm | 594 x 328 x 470 mm | 594 x 328 x 461 mm |
Shipping weight |
9,1 kg | 13,5 kg | 20,3 kg | 19,8 kg | 19,8 kg |
Questions about the WFS Series of WORK PRO?
Tau has an enthusiastic team of audio specialists ready to assist you with any questions you may have. Additionally, Tau stocks almost all WORK PRO products, allowing us to deliver orders as soon as the next business day. Need more information about a specific product, advice on purchasing or installing the right audio setup? Or would you like an installation carried out by a Tau dealer? Get in touch via our contact form or call us at +31 (0)50 549 90 90.
